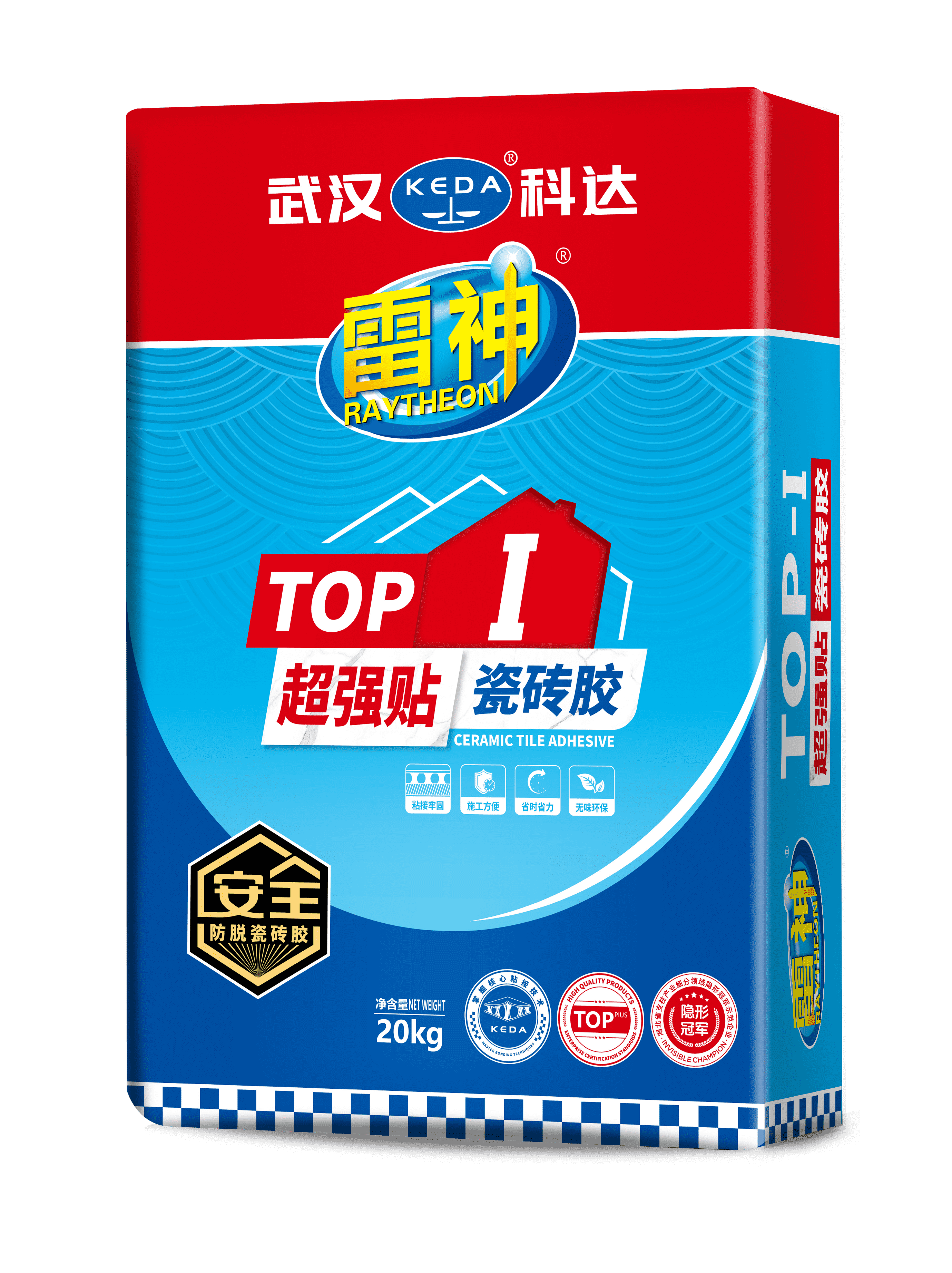

Raytheon TOP-I Super Tile Adhesive

Main features

Strong adhesion
Thin paste method saves space
Fast drying speed
Short construction period
green environmental protection

Product Certification

Color

Product Specifications

Bagged: 20kg per Bag

Executive standards

National standard: GB/T 25181-2019 "Ready-mixed mortar" DTA I type

Product overview

Raytheon TOP-I super tile adhesive is a special mortar product prepared from natural mineral raw materials and modified polymers. The product can be used by adding water and stirring. Compared with traditional cement mortar, the paving construction is simple, and the thin paste can effectively save space and save labor and time. And through the French indoor air environment testing A- level standard, green environmental protection, health and safety

Product characteristics

Characteristic one	Firmly bonded	Characteristic II	convenient construction
Characteristic three	Save time and effort	Characteristic four	tasteless environmental protection

Scope of application

Products suitable for indoor concrete, plastering, brick wall and other grass-roots

Suitable for pasting water absorption rate> 6% of ordinary tiles, ceramic mosaics, etc

Not suitable for outdoor, exterior wall and other parts of the tile shop

Indoor tile size ≤ 600*600mm

Construction operation

1. [Water ratio]

the mixing ratio of water is powder: clear water = 20kg:4.2-5.4kg

2. [Mixing method]

pour an appropriate proportion of water into the mixing bucket, and then pour the powder into the water and use an electric mixer to stir evenly, that is, the mixing method of adding water first and then pouring the material. Note: If the mixing method of pouring the material first and then adding water is adopted, it is easy to cause the ceramic tile adhesive mass to not be stirred, which not only affects the subsequent construction, but also causes the material performance to decline.

3. [Stirring time]

Use a mixer to fully stir until there is no raw powder, place for 3-5 minutes, and then stir for 15-30 seconds to use, mixing good tile glue should be used up within 2 hours

4. [recommend construction]

recommend use double-sided scraping method thin paste construction

5. [Construction method]

with a spatula will tile glue force thin coated on a stable base, and then a thick batch of a layer of tile glue, and with a suitable tooth-shaped spatula combing tile glue layer, each coating area ≤ 1m², and then knead the tiles with a thin batch of tile glue on the back on the undried and combed tile glue layer. Before tiling, check whether the adhesive layer has been dried on the surface. If it has not been dried on the surface, tiling can be applied again. The depth of the spatula teeth should consider the flatness of the base layer and the degree of convexity and concavity on the back of the tile.

6. [Special attention]

if the trench on the back of the ceramic tile is deep or the size of the ceramic tile is ≥ 300*300mm, the construction method should be adopted, I .e. the construction method of applying ceramic tile glue on the base layer of the tile and combing, applying ceramic tile glue on the back of the ceramic tile, then sticking the ceramic tile on the combed ceramic tile glue layer, and properly kneading and pressing. In order to ensure the construction quality, the construction personnel should open the vitrified tiles that have been pasted from time to time to ensure that the base surface on the back of the tiles is fully covered with tile glue.

7. [Reference Dosage]

Per square meter 1mm thickness of dosage is about 1.5kg; The specific situation depends on the base surface flatness and tile size.

Precautions

1. The product should be used by adding water in accordance with the reference ratio. After adding water and stirring, it should be used up within 2 hours. It is strictly prohibited to add any other materials, such as cement, sand, fine powder, lightweight materials, etc
2. This product is made from natural minerals as raw materials. Color differences between batches are normal phenomena and do not affect normal use
3. The release agent on the back of the tiles must be cleaned thoroughly
4. Do not mix damp or clumped dry powder of the adhesive with water before use
5. The construction temperature should be between 5 and 35℃. Construction should be avoided as much as possible in rainy, high-temperature, strong wind, severe cold and frost weather. If construction needs to be carried out on rainy days, proper shielding and protective measures should be taken, and it is necessary to ensure that the construction area is not wet by rain within 24 hours after construction
6. It is recommended to use a toothed scraper tool to lay tiles at an Angle of about 60 degrees to the inner side of the base layer. The thin laying process of applying mortar on both the wall and the back of the tiles should be adopted, with the standard requirement being ≥95%
7. When laying tiles, the thickness of the adhesive mortar should be between 3 and 10mm
8. When tiling indoors, there must be a gap of no less than 2mm between each tile
9. After the bricklaying is completed, the next step of grouting can only be carried out after the mortar has completely dried and solidified (≥24 hours)

Transportation and storage

Storage conditions

Store unopened products in a dry, cool and ventilated place
Transportation requirements

Transport should be protected from rain, keep the package intact
Warranty Period

Under normal storage and transportation conditions, the shelf life of the product is one year

FAQ

Q When mixing the tile adhesive, there are powder lumps or it is too thin: A
Water was not added in proportion or the stirring time was insufficient.
Solution: 1. Mix strictly in accordance with the product instructions (usually the water-cement ratio is about 1:4);
2. Use an electric mixer to stir until there are no lumps. Let it stand for 5 minutes and then stir again.

Q After the tile adhesive was applied, the adhesive slurry dried and solidified too quickly, and the available working time was insufficient: A
High-temperature, dry environment or excessive mixing of the adhesive at one time.
Solution: Prepare in small amounts multiple times (use up within 2 hours);
2. Avoid construction in direct sunlight or strong wind conditions. The construction temperature should be between 5 and 35 degrees Celsius.

Q After completion, the tiles made a hollow sound when tapped and even fell off: A
1. The base surface is not firm, has oil stains or dust;
2. The adhesive was not evenly applied (without using a toothed scraper), and the construction was carried out by the back adhesive method.
3. The thickness of the tile adhesive applied exceeded 1.5cm.
Solution: Before construction, ensure that the base surface has sufficient strength, and then clean the base surface (an interface agent can be used to enhance adhesion).
2. Adopt the "double-sided gluing method" (assembly method for construction);
3. Gently tap the tiles with a rubber hammer to ensure that the full slurry rate is ≥95%.
4. The construction thickness should be controlled under 1.5cm and must not exceed 2cm.

Q Cracks appeared in the adhesive layer after drying: A
The adhesive paste is too thick (exceeding 6mm) or the base surface absorbs water too quickly.
Solution: When applying thick tiles, switch to a combination of tile adhesive and tile back adhesive. Moisten the base surface in advance (without standing water).

Q Tile adhesive cannot stick tiles (especially large-sized tiles or vitrified tiles).: A
1. Selecting the wrong type of tile adhesive (such as using C1 adhesive to stick large tiles);
2. Large-sized low water absorption bricks were not used in conjunction with back adhesive.
Solution: For large bricks and low water absorption rate bricks, select C2 grade high-strength tile adhesive and use it in combination with back adhesive.

Q The tiles are not flat after being laid: A
No leveling device was used or the construction techniques were inconsistent.
Solution: Use cross-shaped clips to control the gaps when laying. For large bricks, it is recommended to use a laser level to assist in leveling.

Q The tile adhesive overflows from the gaps, affecting the grouting: A
The glue slurry is too thin or the jointing is done too early.
Solution:
Clean up the spilled glue slurry in time (before curing). The joint filling needs to be done after the adhesive has completely cured (usually 24 hours later).

Q Alkali efflorescence or glue stains appear on the surface of the tiles: A
The glue slurry was not cleaned up in time.
Solution:
Immediately wipe the surface of the tiles with a damp sponge after construction.

Q The tiles in the corner cracked later: A
There is no gap left for thermal expansion and contraction or the flexibility of the adhesive is insufficient.
Solution: Leave a 2-3mm expansion joint and use flexible grout. It is recommended to apply a 45° chamfer at the positive corners.

Q The tiles became loose after being used for a period of time: A
Deformation of the base surface (such as the lightweight wall not being reinforced) or aging of the mortar.
Solution: The lightweight wall needs to be reinforced with steel wire mesh. For damp areas, waterproof tile adhesive (such as C2TE standard) should be selected.
Preventive measures: 1. Base surface treatment: Ensure it is solid, flat, and free of oil stains. Base surfaces with high water absorption rates need to be moistened. 2. Choose the right material: Select the grade of tile adhesive based on the type of tile (size, water absorption rate) and the environment (indoor and outdoor, damp areas). 3. Standardized construction The toothed scraper is used to apply the adhesive, with the thickness of the adhesive slurry being 3 to 6mm. Large bricks need to be supported and fixed to prevent sliding. 4. Maintenance: Avoid stepping on or getting wet within 24 hours after construction.
