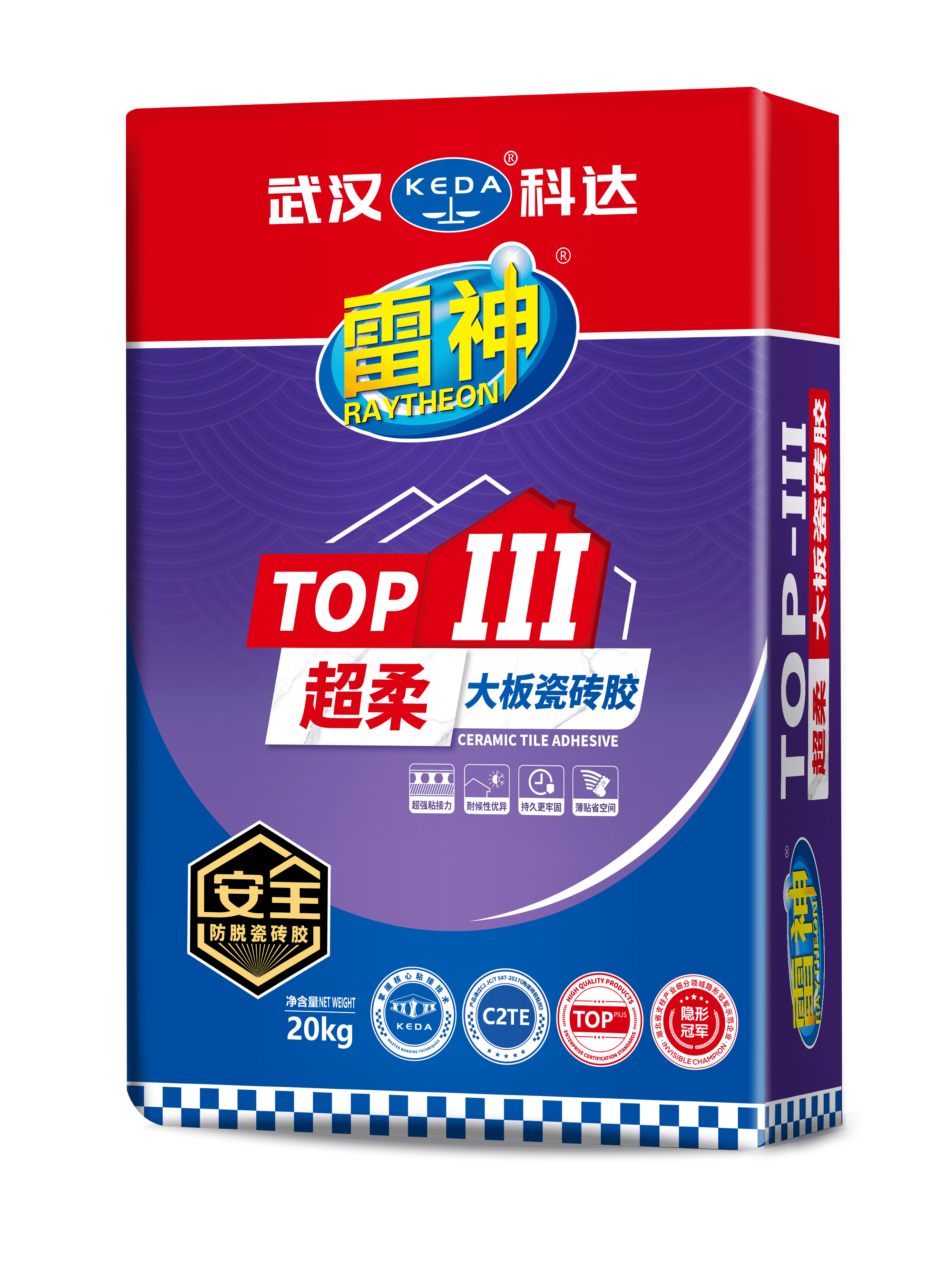

Raytheon TOP-III super soft large plate ceramic tile adhesive

is specially designed for indoor large plate paving. It is a special mortar product made of high-quality natural inorganic mineral raw materials and multi-functional modified polymer. The product has a strong bonding force, paving the large plate firmly do not fall off the brick, and the construction is convenient, thin paste saves material and space. And through the French indoor air environment testing A standard, green and safe, fearless brick

• Suitable for concrete, cement plaster, concrete slab, plastering brick surface, cement-based waterproof coating and other grass-roots
• Suitable for indoor wall paste water absorption ≥ 0.2, size ≤ 600*1200mm polished tiles, vitrified tiles, antique tiles and other floor tiles on the wall
• Indoor and outdoor, wall ground applicable

1. [Water ratio]

the mixing ratio of water is powder: clear water = 20kg:4.2-5.4kg

2. [Mixing method]

pour an appropriate proportion of water into the mixing bucket, and then pour the powder into the water and use an electric mixer to stir evenly, that is, the mixing method of adding water first and then pouring the material. Note: If the mixing method of pouring the material first and then adding water is adopted, it is easy to cause the ceramic tile adhesive mass to not be stirred, which not only affects the subsequent construction, but also causes the material performance to decline.

3. [Stirring time]

Use a mixer to fully stir until there is no raw powder, place for 3-5 minutes, and then stir for 15-30 seconds to use, mixing good tile glue should be used up within 2 hours

4. [recommend construction]

recommend use double-sided scraping method thin paste construction

5. [Construction method]

Use a spatula to apply the tile glue to a stable base layer, then apply a thick layer of tile glue, and use a suitable tooth-shaped spatula to comb the tile glue layer, each time the coating area is ≤ 1m2, and then knead the tiles with the thin batch of tile glue on the back to the undried and combed tile glue layer. Before tiling, check whether the adhesive layer has been dried on the surface. If it has not been dried on the surface, tiling can be applied again. The depth of the spatula teeth should consider the flatness of the base layer and the degree of convexity and concavity on the back of the tile.

6. [Special attention]

if the trench on the back of the ceramic tile is deep or the size of the ceramic tile is ≥ 300*300mm, the construction method should be adopted, I .e. the construction method of applying ceramic tile glue on the base layer of the tile and combing, applying ceramic tile glue on the back of the ceramic tile, then sticking the ceramic tile on the combed ceramic tile glue layer, and properly kneading and pressing. In order to ensure the construction quality, the construction personnel should open the tiles that have been pasted from time to time to ensure that the base surface on the back of the tiles is all glued with tile glue.

7. [Reference Dosage]

Per square meter 1mm thickness of dosage is about 1.5kg; The specific situation depends on the base surface flatness and tile size.

1. The product should be used by adding water in accordance with the reference ratio. After adding water and stirring, it should be used up within 2 hours. It is strictly prohibited to add any other materials, such as cement, sand, fine powder, lightweight materials, etc
2. This product is made from natural minerals as raw materials. Color differences between batches are normal phenomena and do not affect normal use
3. The release agent on the back of the tiles must be cleaned thoroughly
4. Do not mix damp or clumped dry powder of the adhesive with water before use
5. The construction temperature should be between 5 and 35℃. Construction should be avoided as much as possible in rainy, high-temperature, strong wind, severe cold and frost weather. If construction needs to be carried out on rainy days, proper shielding and protective measures should be taken, and it is necessary to ensure that the construction area is not wet by rain within 24 hours after construction
6. It is recommended to use a toothed scraper tool to lay tiles at an Angle of about 60 degrees to the inner side of the base layer. The thin laying process of applying mortar on both the wall and the back of the tiles should be adopted, with the standard requirement being ≥95%
7. When laying tiles, the thickness of the adhesive mortar should be between 3 and 10mm
8. When tiling indoors, there must be a gap of no less than 2mm between each tile
9. After the bricklaying is completed, the next step of grouting can only be carried out after the mortar has completely dried and solidified (≥24 hours)
