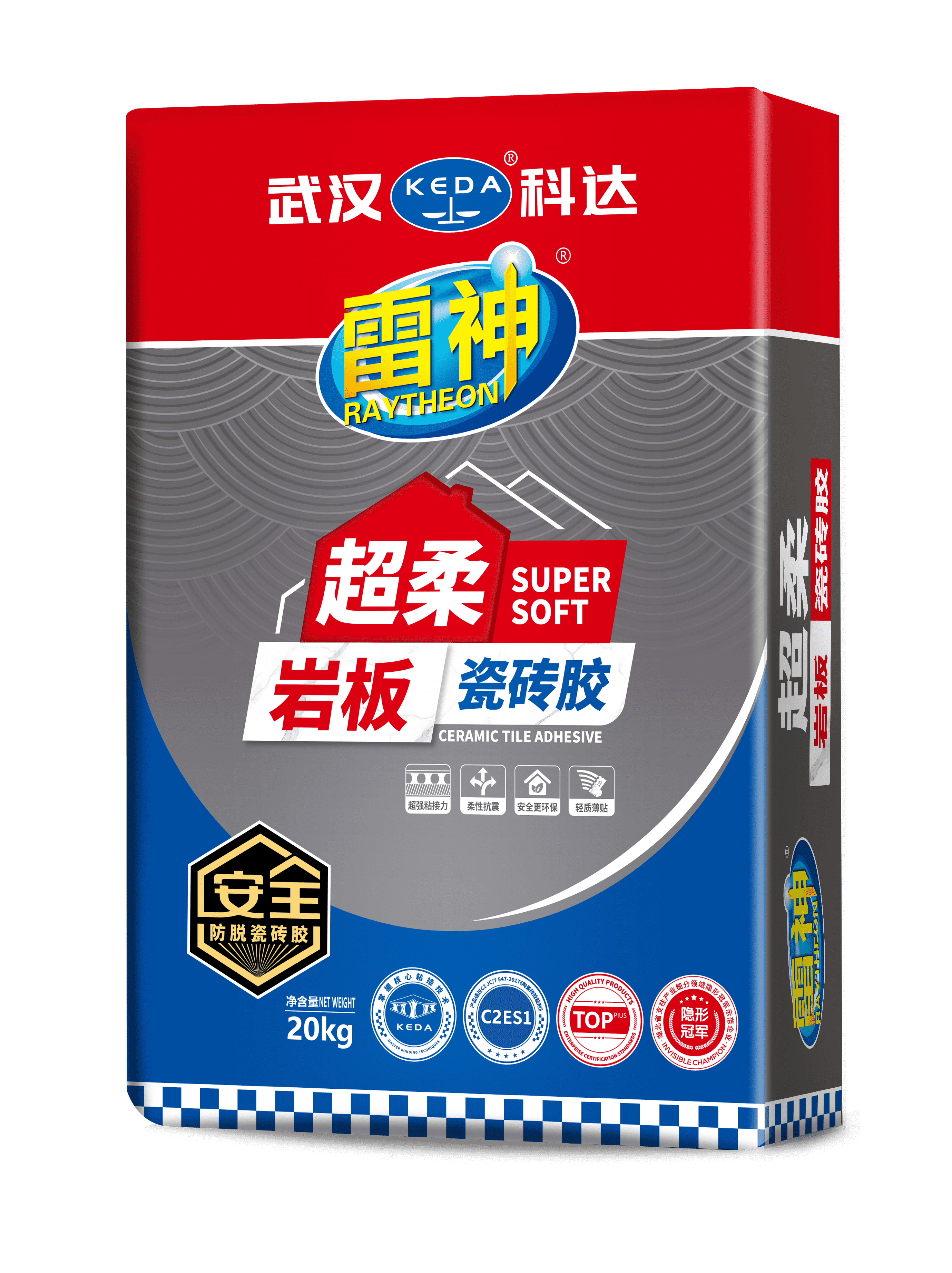

Raytheon Super Soft Rock Tile Glue
Main features
  • Lightweight thin paste
  • flexible anti-seismic
  • Safety and environmental protection
  • green environmental protection
Product Certification
Color
  • Grey
Product Specifications
  • Bagged: 20kg per Bag
Executive standards
  • JC/T 547-2017 Ceramic Tile Adhesive C2TE
Product overview

Raytheon super soft rock tile glue the high-strength and high-performance cement-based adhesive composed of high-quality cement, selected graded aggregate and special additives is especially suitable for the paving of ceramic sheets, rock plates and other large-size ceramic tiles and natural stone. The product construction is convenient, thin paste effectively save space. And through France. A + indoor environment detection, green safety, tile worry-free

Product characteristics
Characteristic one
Lightweight thin paste
Characteristic II
flexible anti-seismic
Characteristic three
super adhesive force
Characteristic four
Safe and more environmentally friendly
Scope of application

1. suitable for concrete, cement plaster, concrete slab, plastering brick surface, cement-based waterproof coating and other basic
2. suitable for indoor wall paste size ≤ 2400*1200mm rock plate, ceramic plate, etc. (thickness ≤ 12mm)
3. Applicable to all kinds of ceramic tiles
4. with side length ≥ 800mm on indoor wall 4. Suitable for dry or wet base
5. suitable for a certain deformation or micro vibration of the base

Construction operation

1. [Water ratio]

the mixing ratio of water is powder: clear water = 20kg:4.2-5.2Kg;.

2. [Mixing method]

pour an appropriate proportion of water into the mixing bucket, and then pour the powder into the water and use an electric mixer to stir evenly, that is, the mixing method of adding water first and then pouring the material. Note: If the mixing method of pouring material first and then adding water is adopted, it is easy to cause the ceramic tile gluing group to fail to stir, which not only affects the subsequent construction, but also leads to the decline of material performance.

3. [Stirring time]

use a mixer to fully stir until there is no raw powder, place for 3-5 minutes, stir again for 15-30 seconds to use, and the stirred tile glue should be used up within 2 hours.

4. [recommend construction]

recommend the use of double-sided scraping method thin paste construction.

5. [Construction method]

use a spatula to apply the tile glue to a stable base layer, then apply a thick layer of tile glue, and use a suitable tooth-shaped spatula to comb the tile glue layer, with the coating area ≤ 1m2 each time, then apply a batch of tile glue to the back of the tile, and carry out combing. The combing direction is parallel to the wall surface, and the combing tile or rock board is rubbed on the tile glue layer that is not dry and has passed through, use the shaker to vibrate. The depth and size of the spatula teeth should consider the flatness of the base layer and the degree of convexity and concavity on the back of the tile.

6. [Special attention]

in order to ensure the construction quality, the construction personnel should open the tiles that have been pasted from time to time to ensure that the base surface on the back of the tiles is fully covered with tile glue.

7. [Reference Dosage]

the amount of 1mm thickness per square meter is about 1.5kg, depending on the flat base surface and the size of the tile.

Precautions

1. The product should be used by adding water in accordance with the reference ratio. After adding water and stirring, it should be used up within 2 hours. It is strictly prohibited to add any other materials, such as cement, sand, fine powder, lightweight materials, etc
2. This product is made from natural minerals as raw materials. Color differences between batches are normal phenomena and do not affect normal use
3. The release agent on the back of the tiles must be cleaned thoroughly
4. Do not mix damp or clumped dry powder of the adhesive with water before use
5. The construction temperature should be between 5 and 35℃. Construction should be avoided as much as possible in rainy, high-temperature, strong wind, severe cold and frost weather. If construction needs to be carried out on rainy days, proper shielding and protective measures should be taken, and it is necessary to ensure that the construction area is not wet by rain within 24 hours after construction
6. It is recommended to use a toothed scraper tool to lay tiles at an Angle of about 60 degrees to the inner side of the base layer. The thin laying process of applying mortar on both the wall and the back of the tiles should be adopted, with the standard requirement being ≥95%
7. When laying tiles, the thickness of the adhesive mortar should be between 3 and 10mm
8. When tiling indoors, there must be a gap of no less than 2mm between each tile
9. After the bricklaying is completed, the next step of grouting can only be carried out after the mortar has completely dried and solidified (≥24 hours)

Transportation and storage
  • Storage conditions
    Store unopened products in a dry, cool and ventilated place
  • Transportation requirements
    Transport should be protected from rain, keep the package intact
  • Warranty Period
    Under normal storage and transportation conditions, the shelf life of the product is one year
FAQ
Q
When mixing the tile adhesive, there are powder lumps or it is too thin
A
Water was not added in proportion or the stirring time was insufficient.
Solution: 1. Mix strictly in accordance with the product instructions (usually the water-cement ratio is about 1:4);
2. Use an electric mixer to stir until there are no lumps. Let it stand for 5 minutes and then stir again.
Q
After the tile adhesive was applied, the adhesive slurry dried and solidified too quickly, and the available working time was insufficient
A
High-temperature, dry environment or excessive mixing of the adhesive at one time.
Solution: Prepare in small amounts multiple times (use up within 2 hours);
2. Avoid construction in direct sunlight or strong wind conditions. The construction temperature should be between 5 and 35 degrees Celsius.
Q
After completion, the tiles made a hollow sound when tapped and even fell off
A
1. The base surface is not firm, has oil stains or dust;
2. The adhesive was not evenly applied (without using a toothed scraper), and the construction was carried out by the back adhesive method.
3. The thickness of the tile adhesive applied exceeded 1.5cm.
Solution: Before construction, ensure that the base surface has sufficient strength, and then clean the base surface (an interface agent can be used to enhance adhesion).
2. Adopt the "double-sided gluing method" (assembly method for construction);
3. Gently tap the tiles with a rubber hammer to ensure that the full slurry rate is ≥95%.
4. The construction thickness should be controlled under 1.5cm and must not exceed 2cm.
Q
Cracks appeared in the adhesive layer after drying
A
The adhesive paste is too thick (exceeding 6mm) or the base surface absorbs water too quickly.
Solution: When applying thick tiles, switch to a combination of tile adhesive and tile back adhesive. Moisten the base surface in advance (without standing water).
Q
Tile adhesive cannot stick tiles (especially large-sized tiles or vitrified tiles).
A
1. Selecting the wrong type of tile adhesive (such as using C1 adhesive to stick large tiles);
2. Large-sized low water absorption bricks were not used in conjunction with back adhesive.
Solution: For large bricks and low water absorption rate bricks, select C2 grade high-strength tile adhesive and use it in combination with back adhesive.
Q
The tiles are not flat after being laid
A
No leveling device was used or the construction techniques were inconsistent.
Solution: Use cross-shaped clips to control the gaps when laying. For large bricks, it is recommended to use a laser level to assist in leveling.
Q
The tile adhesive overflows from the gaps, affecting the grouting
A
The glue slurry is too thin or the jointing is done too early.
Solution:
Clean up the spilled glue slurry in time (before curing). The joint filling needs to be done after the adhesive has completely cured (usually 24 hours later).
Q
Alkali efflorescence or glue stains appear on the surface of the tiles
A
The glue slurry was not cleaned up in time.
Solution:
Immediately wipe the surface of the tiles with a damp sponge after construction.
Q
The tiles in the corner cracked later
A
There is no gap left for thermal expansion and contraction or the flexibility of the adhesive is insufficient.
Solution: Leave a 2-3mm expansion joint and use flexible grout. It is recommended to apply a 45° chamfer at the positive corners.
Q
The tiles became loose after being used for a period of time
A
Deformation of the base surface (such as the lightweight wall not being reinforced) or aging of the mortar.
Solution: The lightweight wall needs to be reinforced with steel wire mesh. For damp areas, waterproof tile adhesive (such as C2TE standard) should be selected.
Preventive measures: 1. Base surface treatment: Ensure it is solid, flat, and free of oil stains. Base surfaces with high water absorption rates need to be moistened. 2. Choose the right material: Select the grade of tile adhesive based on the type of tile (size, water absorption rate) and the environment (indoor and outdoor, damp areas). 3. Standardized construction The toothed scraper is used to apply the adhesive, with the thickness of the adhesive slurry being 3 to 6mm. Large bricks need to be supported and fixed to prevent sliding. 4. Maintenance: Avoid stepping on or getting wet within 24 hours after construction.
